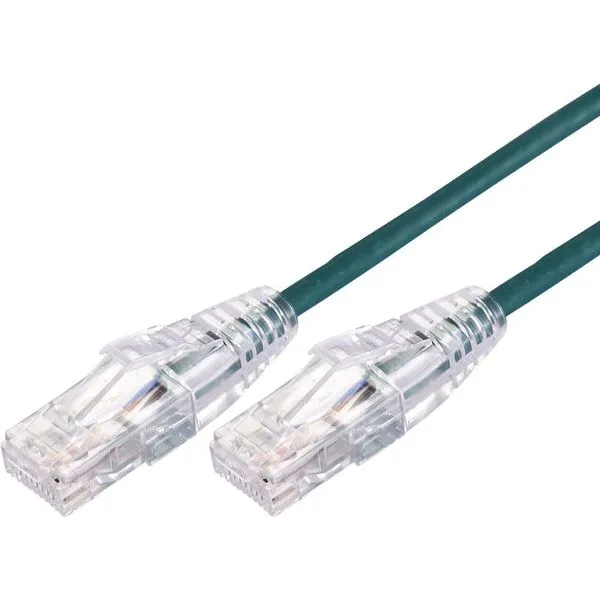

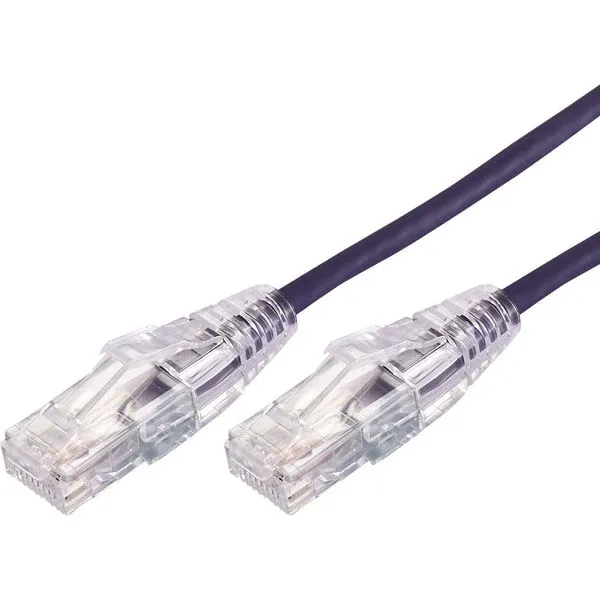

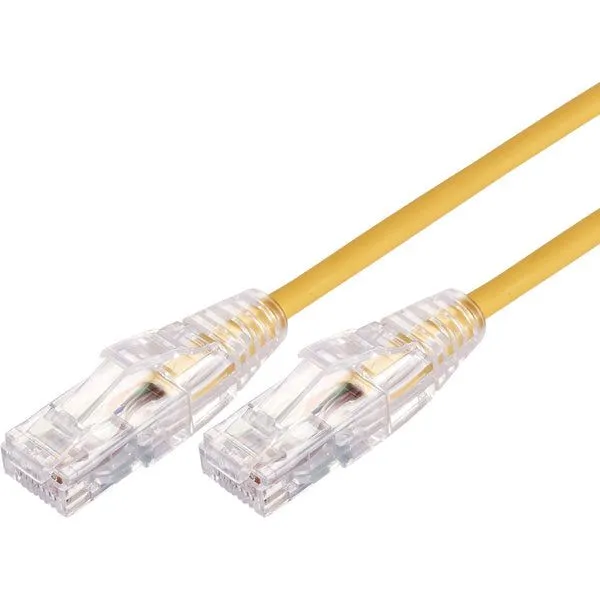

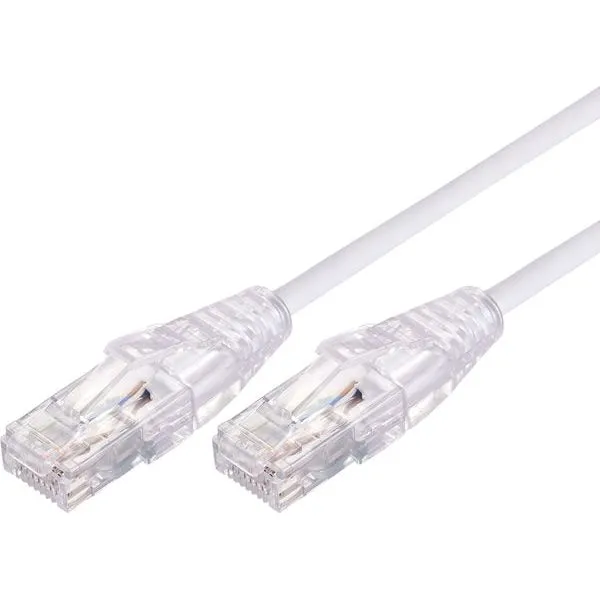

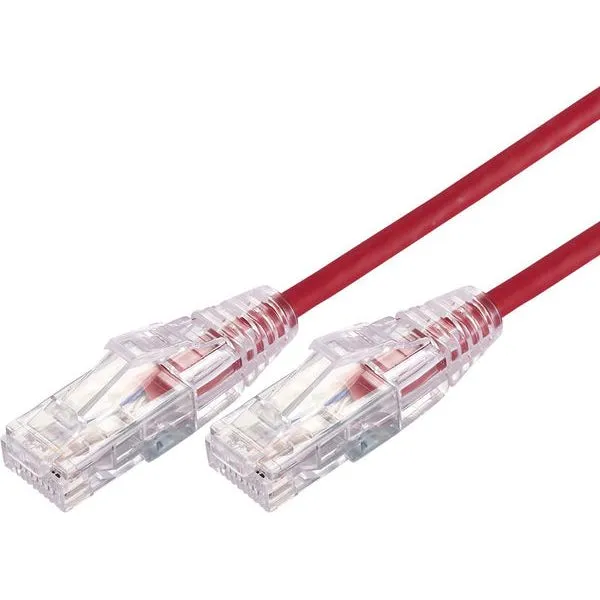

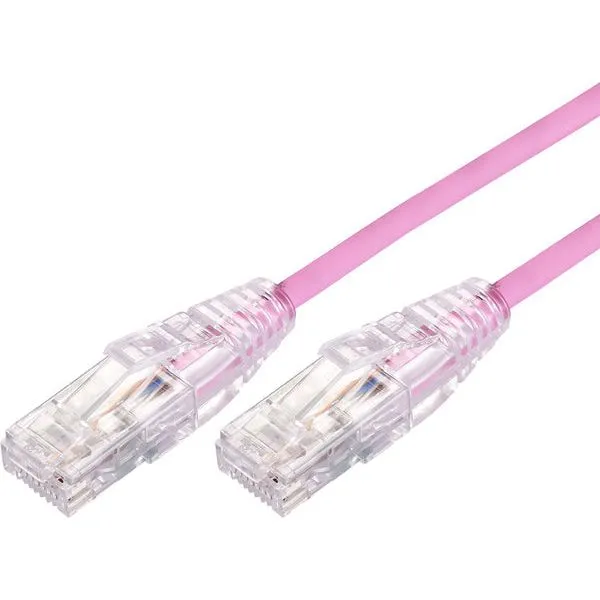

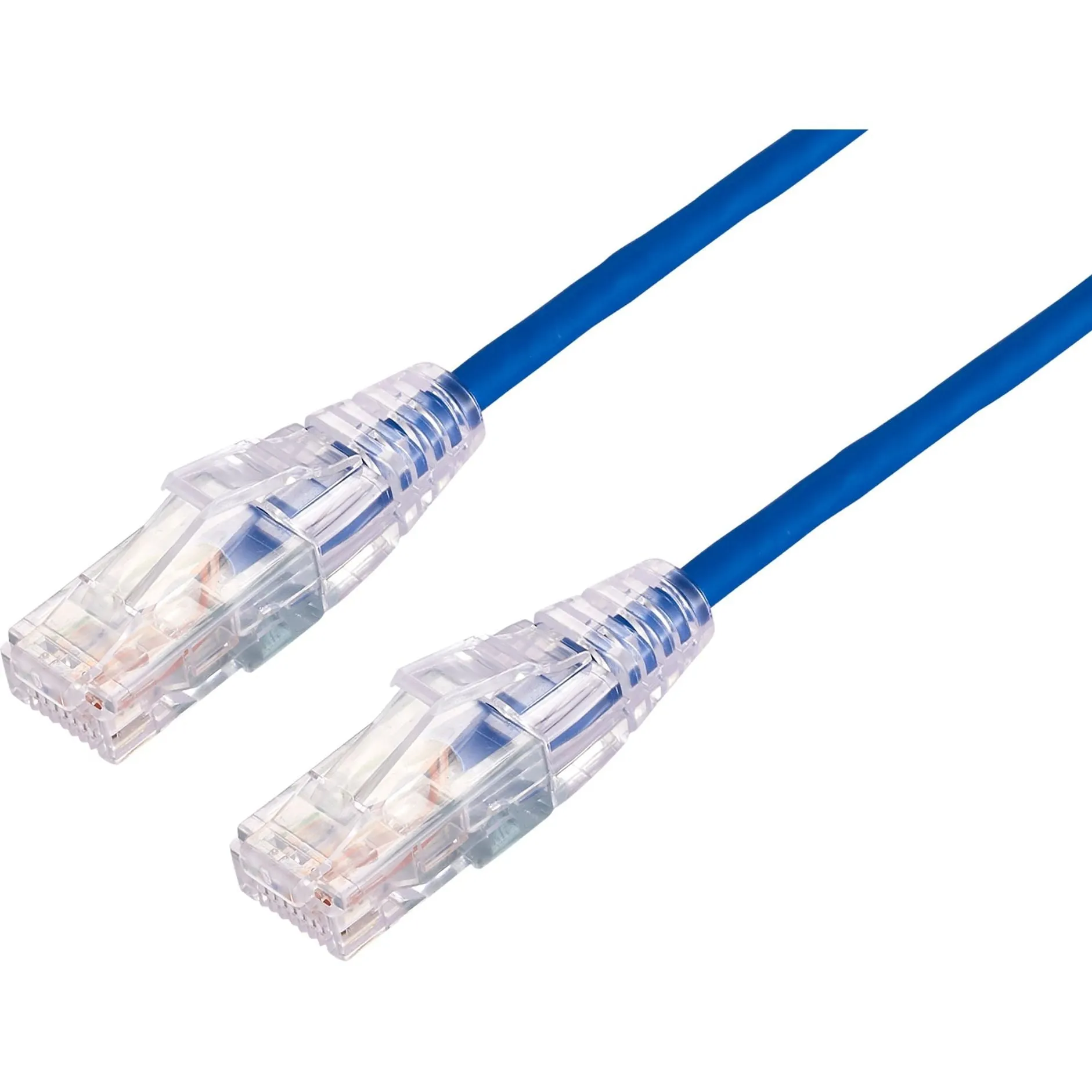

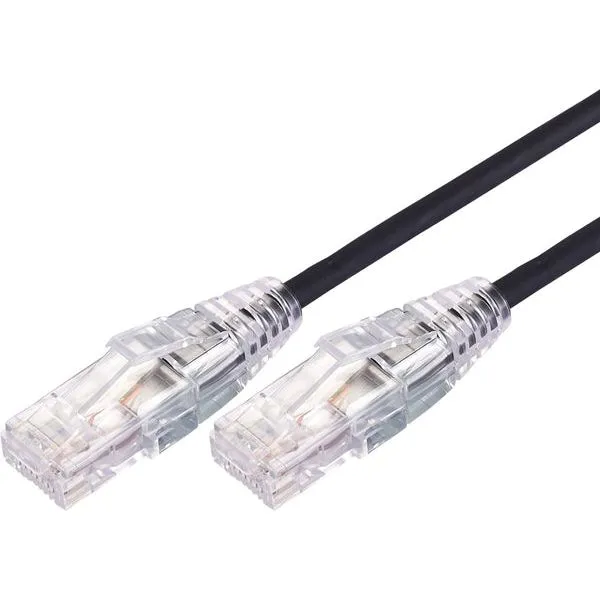

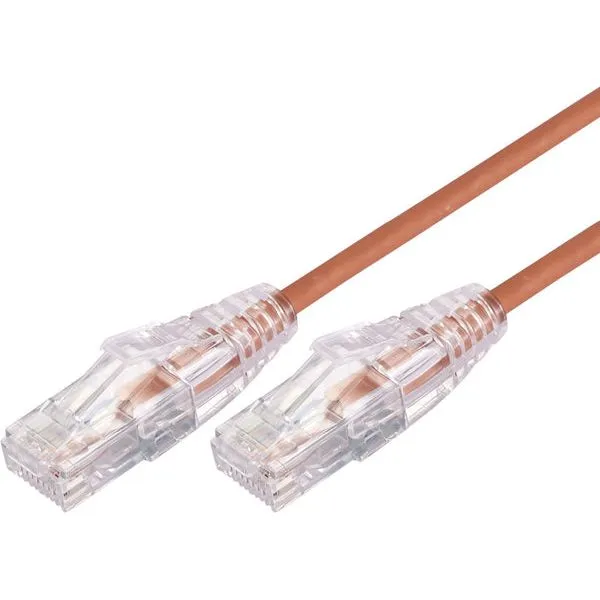

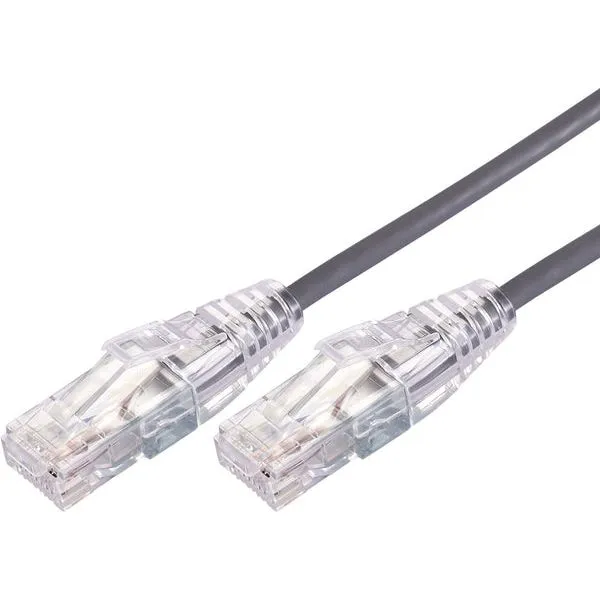

CAT6A ULTRATHIN NETWORK CABLES
Our CAT6A Ultra-thin cables are designed for high density applications in Data Centres, MDF’s and patch racks. Supporting up to 10 Gigabit Ethernet and meeting CAT6A TIA/EIA and IEEE 802.3an these cables can be used in high speed, critical applications while reducing the overall footprint and weight of the deployment.

All Blupeak cables are created to the highest standard, to meet or exceed IEEE standards. Our network cables are constructed with high quality components and staggered pin construction to reduce Near End Crosstalk (NEXT). All network jackets are LSZH (Low Smoke Zero Halogen) and include a Lifetime warranty.

Features Description
Length 30cm to 5m

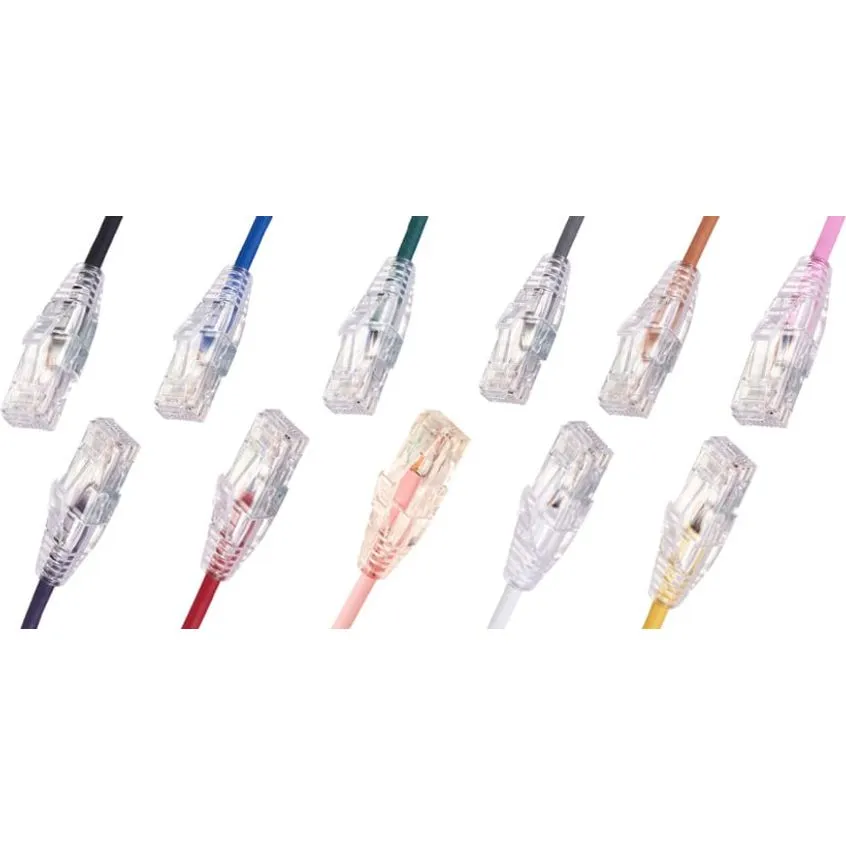

Colour Black, Blue, Green, Grey, Orange, Pink, Purple, Red & White
Performance 10 Gigabit, Gigabit and 10/100Mbps Fast Ethernet
Plug Snagless moulded boot
Connector 50 Micron gold plated, staggered pin
Cable Outer Diameter: 3.8mm, LSZH Jacket (Low Smoke Zero Halogen)
Conductors 28 AWG twisted pair stranded conductors
Certification A-Tick, ETL TIA-568-C.2.1, IEEE802.3an

WHEN SHOULD I USE AN ULTRATHIN CABLE
Ultrathin cables are well suited to patching and in rack applications and
will provide the same performance as a standard CAT6A cable over short
cable runs, when part of a longer cable run a deration of length should be
considered.

The use of Ultrathin cables is suitable for Vertical cable infrastructure however
standard cables are still recommended for Horizontal cabling.
Additional care should also be taken in reducing the bundle size when use
in POE applications as the reduced wire gauge will increase the heat generated
in these applications.
